150A High Precision Battery Watt Meter 2x Anderson 50a Con. RED

£39.00 * £46.94 * (16.92% Saved)

Prices incl. VAT (possibly country-dependent) plus shipping costs

In stock

  • POWM-50A-AN50
Amazon PayAmerican ExpressFinancingiDEALCredit cardMaestroMasterCardPayPalRatenzahlung Powered by PayPalSofort.PrepaymentLogo 1
150A High Precision Battery Watt Meter And Power Analyzer | 2 x Anderson 50a Connector | RED... more
Product information "150A High Precision Battery Watt Meter 2x Anderson 50a Con. RED"

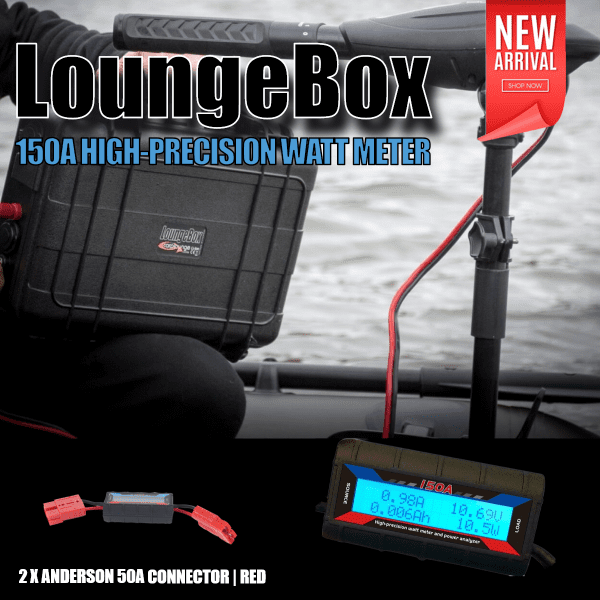

150A High Precision Battery Watt Meter And Power Analyzer

| 2 x Anderson 50a Connector | RED

The 150A High Precision Watt Meter and Power Analyzer is designed to measures up to 60V and 150A. Perfect to use with the loungebox and e-motor to monitor the current, amps, volts etc..

The blue backlit LCD display is clear, bright and easy to read with continuous real time displays of amps, volts, and watts etc.. This is the perfect troubleshooting multifunction tool. This all-in-one watt meter is indispensable for analysing, testing, and troubleshooting any other DIY DC power project.

Available with the following connections

| 2x Anderson 120a Connector| Grey
| XT60-Male -> XT-60 Female Connector

Main Feature:

| Working voltage: 0 to 60 Volts.
| Easy To Use: Requires no configuration or programming.
| Digital LCD screen: Easy to read LCD screen provides clear number readings.
| Real Time Reading: The Watt Meter will continuously provide real time readings of
the amps, volts, and watts after connection. (All Measurement screen value are updated
every 0.4 second)
| Connecting load end to the battery provides real-time battery charging reading.
| Can easily calculate the voltage, current, power, discharge capacity,and discharge time.

Test Range and Display format:

| Operates from 4.8-60V (0V with optional auxiliary battery)
| Measures 0-60V, 0-150A, 0-6554W, 0-6554Wh, 0-65Ah
| Voltage test range: 0~60V, resolution 0.01V.
| Current test range: 0~ 150A, resolution 0.01A.
| Active Power test range: 0~6554W, resolution 0.1W.
| Energy test range: 0~6554Wh, resolution 0.1Wh.
| Charge test range: 0-65Ah, resolution 0.001Ah.
| Measurement Update period: 400mS.
| Signal Sampling Rate: sample/s.
| Data Queue Sequence time: 2 seconds.
| In Circuit Resistance: 0.001 Ohms.
| Operation Current: 7 mA.
| Auxiliary Power Voltage: 4.0V ~ 60V
| Size: 8.3cm x 4.7cm x 2cm - 3.27inch x 1.85inch x 0.79inch
| Display Screen: 1602 STN LCD


Includes:
150A Watt Meter and Power Analyzer
